ElmasonicP

Two frequency ranges

37 kHz for powerful applications and 80 kHz for particularly gentle applications

Four application-optimized ultrasonic modes

for optimal process results

Variably adjustable ultrasonic power

in 10% increments for precise power adjustment

Automatic shut-off

for safety during high utilization

Autostart function

for starting the process when a preselected bath temperature is reached

Elmasonic P is the ultrasonic cleaning device for analytical applications with the highest requirements – powerful, precise, and flexibly adjustable. With multi-frequency (37/80 kHz) and adjustable ultrasonic power, it is ideal for tasks in medical and analytical laboratories as well as for intensive cleaning in industry – wherever maximum control and reproducible results are required.

Operating Modes

Sweep Modus

Uniform cleaning through uniform sound field distribution in the ultrasonic bath.

Pulse Modus

Removal of even stubborn dirt through pulsating sound field distribution.

Degas Modus

Gentle cleaning that is remarkably quiet and energy-efficient, ensuring a longer appliance life.

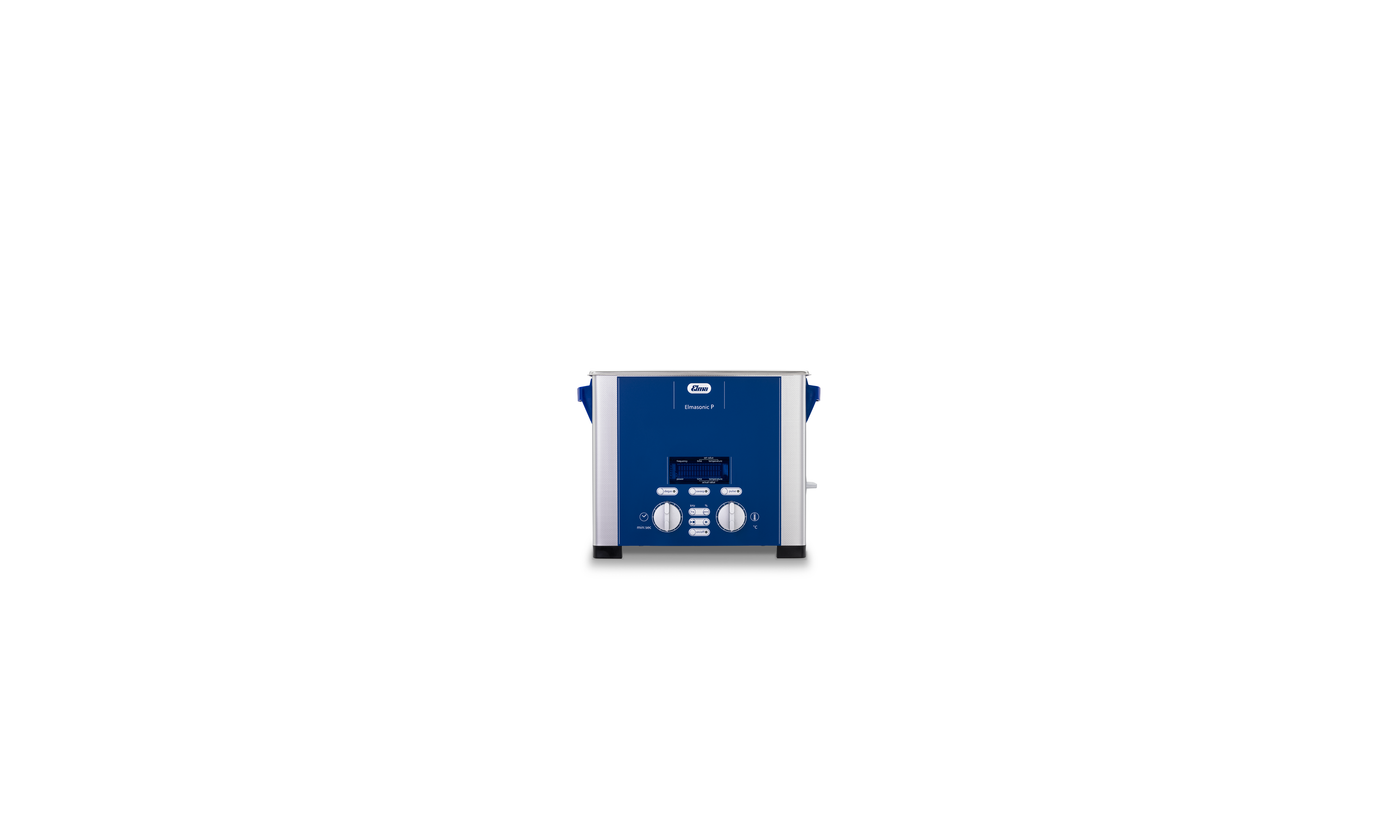

Elmasonic P

30H

Drain Thread

Model Size

Informations
Informations	1.9 l	W	250 W
External dimensions
External dimensions	300 mm	179 mm	221 mm
Internal dimensions
Internal dimensions	220 mm	120 mm	95 mm

€1,020

excl. VAT plus shipping

Description

Scope of Delivery

Power cord (2 m long)
Hose connection nozzle (not included with P 30H SE)
Operating instructions

Note: Cleaning baskets and other accessories are available as optional extras. Items to be cleaned must not be placed directly on the bottom of the tub, as this may cause damage.

Downloads

Elmasonic P Brochure EN
(PDF, 573.75 KB)
Elmasonic P Gebrauchsanweisung EN
(PDF, 866.24 KB)

Model Variant	30H	30H SE	60H	70H	120H	180H	300H
Model Variant	Item number EU 220 - 240 ~V	Item number CH 220 - 240 ~V	Item number UK 220 - 240 ~V	List Price €	Mechanics	Recommended tank operating capacity l	Recommended Working Volume l	External Dimensions mm	Interior Dimensions mm	Weight kg	Drain Thread	Electrical and Noise level	Mains Voltage ± 10 % V	Mains Frequency Hz	Ultrasonic Frequency -2,5 / +5,5 kHz	Total Power Consumption W	Ultrasonic Power eff. ± 10% W	Ultrasonic Peak Power W	Heating Power W	Temperature °C	Safety Class	Sound pressure level (LpAU)*
Item number EU 220 - 240 ~V	1013737-001	1046694-001	1013761-001	1013735-001	1013777-001	1013804-001	1013810-001
Item number CH 220 - 240 ~V	1013737-002	1046694-002	1013761-002	1013735-002	1013777-002	1013804-002	1013810-002
Item number UK 220 - 240 ~V	1013737-003	1046694-003	1013761-003	1013735-003	1013777-003	1013804-003	1013810-003
List Price €	1.020 €	1.020 €	1.410 €	1.500 €	2.120 €	2.340 €	2.720 €
Mechanics
Recommended tank operating capacity l	2,7	2,7	5,9	6,9	12,9	17,8	27,5
Recommended Working Volume l	1,9	1,9	4,3	5,2	9	12,9	20,6
External Dimensions mm	300 × 179 × 221	300 × 179 × 221	365 × 186 × 271	568 × 179 × 221	365 × 278 × 321	390 × 340 × 321	568 × 340 × 321
Interior Dimensions mm	220 × 120 × 95	220 × 120 × 95	275 × 125 × 145	485 × 115 × 95	275 × 215 × 195	300 × 270 × 195	475 × 270 × 195
Weight kg	3,3	3,3	5,1	5,6	7,5	8,5	11
Drain Thread	G 3/8	–	G 3/8	G 3/8	G 3/8	G 3/8	G 3/8
Electrical and Noise level
Mains Voltage ± 10 % V	EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V
Mains Frequency Hz	50 / 60	50 / 60	50 / 60	50 / 60	50 / 60	50 / 60	50 / 60
Ultrasonic Frequency -2,5 / +5,5 kHz	37 / 80	37 / 80	37 / 80	37 / 80	37 / 80	37 / 80	37 / 80
Total Power Consumption W	370	–	–	–	–	–	–
Ultrasonic Power eff. ± 10% W	–	–	–	–	–	–	–
Ultrasonic Peak Power W	–	–	–	–	–	–	–
Heating Power W	250	250	500	750	1.000	1.000	1.250
Temperature °C	30 – 80	30 – 80	30 – 80	30 – 80	30 – 80	30 – 80	30 – 80
Safety Class	IP 20	IP 20	IP 20	IP 20	IP 20	IP 20	IP 20
Sound pressure level (LpAU)*	–	–	–	–	–	–	–
30H	1013737-001	1013737-002	1013737-003	1.020 €		2,7	1,9	300 × 179 × 221	220 × 120 × 95	3,3	G 3/8		EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	50 / 60	37 / 80	370	–	–	250	30 – 80	IP 20	–
30H SE	1046694-001	1046694-002	1046694-003	1.020 €		2,7	1,9	300 × 179 × 221	220 × 120 × 95	3,3	–		EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	50 / 60	37 / 80	–	–	–	250	30 – 80	IP 20	–
60H	1013761-001	1013761-002	1013761-003	1.410 €		5,9	4,3	365 × 186 × 271	275 × 125 × 145	5,1	G 3/8		EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	50 / 60	37 / 80	–	–	–	500	30 – 80	IP 20	–
70H	1013735-001	1013735-002	1013735-003	1.500 €		6,9	5,2	568 × 179 × 221	485 × 115 × 95	5,6	G 3/8		EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	50 / 60	37 / 80	–	–	–	750	30 – 80	IP 20	–
120H	1013777-001	1013777-002	1013777-003	2.120 €		12,9	9	365 × 278 × 321	275 × 215 × 195	7,5	G 3/8		EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	50 / 60	37 / 80	–	–	–	1.000	30 – 80	IP 20	–
180H	1013804-001	1013804-002	1013804-003	2.340 €		17,8	12,9	390 × 340 × 321	300 × 270 × 195	8,5	G 3/8		EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	50 / 60	37 / 80	–	–	–	1.000	30 – 80	IP 20	–
300H	1013810-001	1013810-002	1013810-003	2.720 €		27,5	20,6	568 × 340 × 321	475 × 270 × 195	11	G 3/8		EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	50 / 60	37 / 80	–	–	–	1.250	30 – 80	IP 20	–

Individual consultation

Our experts will assist you in selecting and combining the right equipment, accessories, and chemicals for your requirements.

Request rental equipment

Rent a device as a replacement while your device is being repaired by Elma or to test it for your application.

Start cleaning test

We test your components under real conditions - so you can make confident decisions.
