ElmasonicXtra

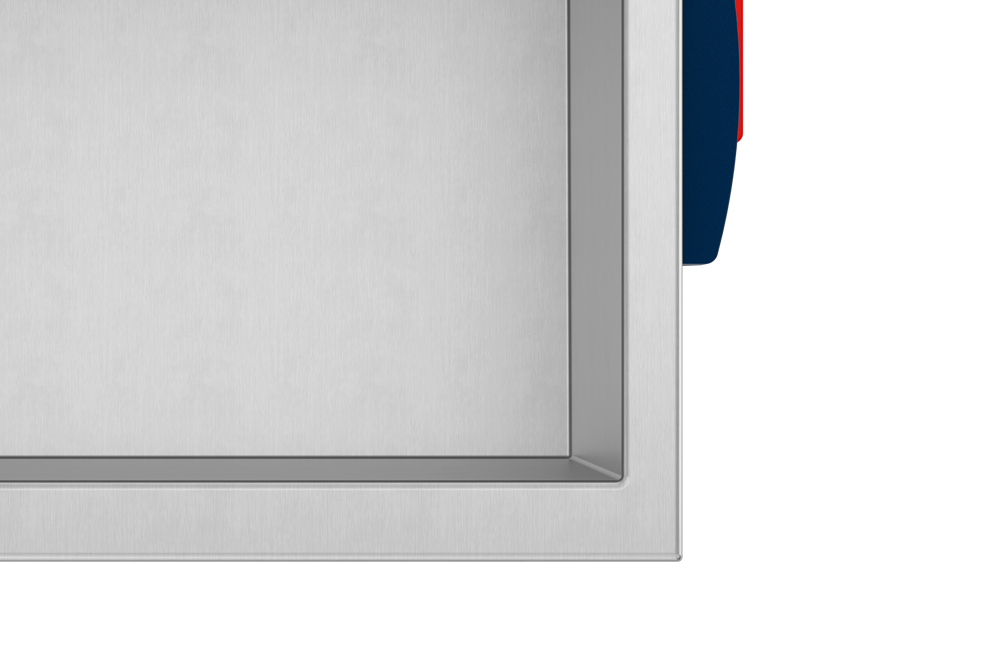

Cavitation-resistant stainless steel tank

for intensive continuous use

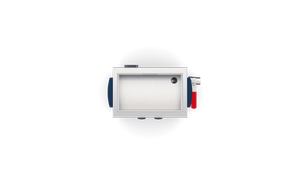

Elmasonic Xtra ultrasonic cleaning device top view

Dynamic & Eco mode

maximum performance or quiet operation with reduced energy consumption

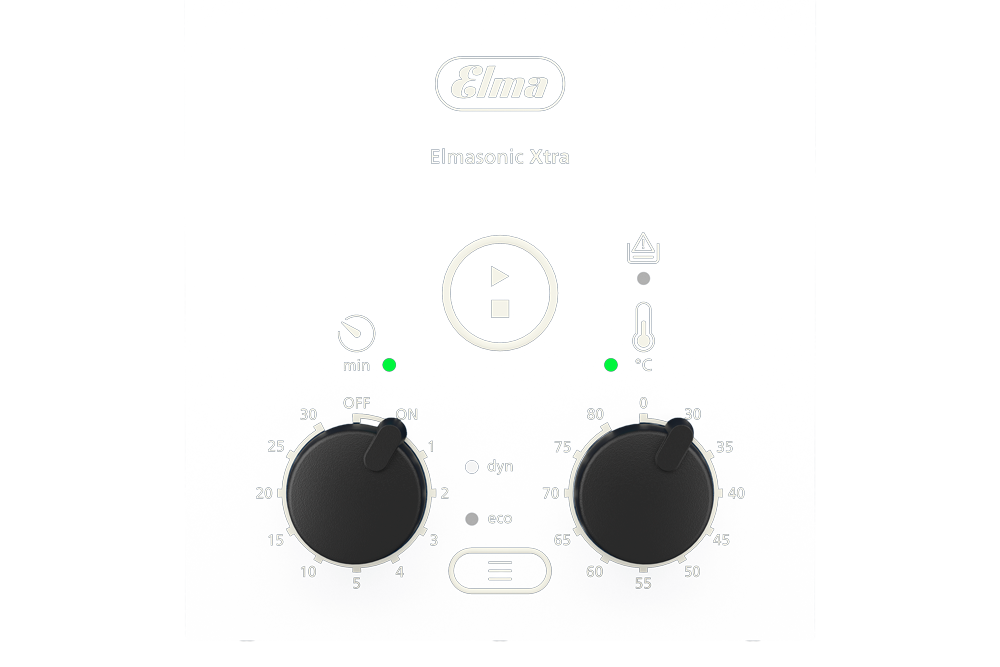

Intuitive operation

with LED displays and practical rotary controls

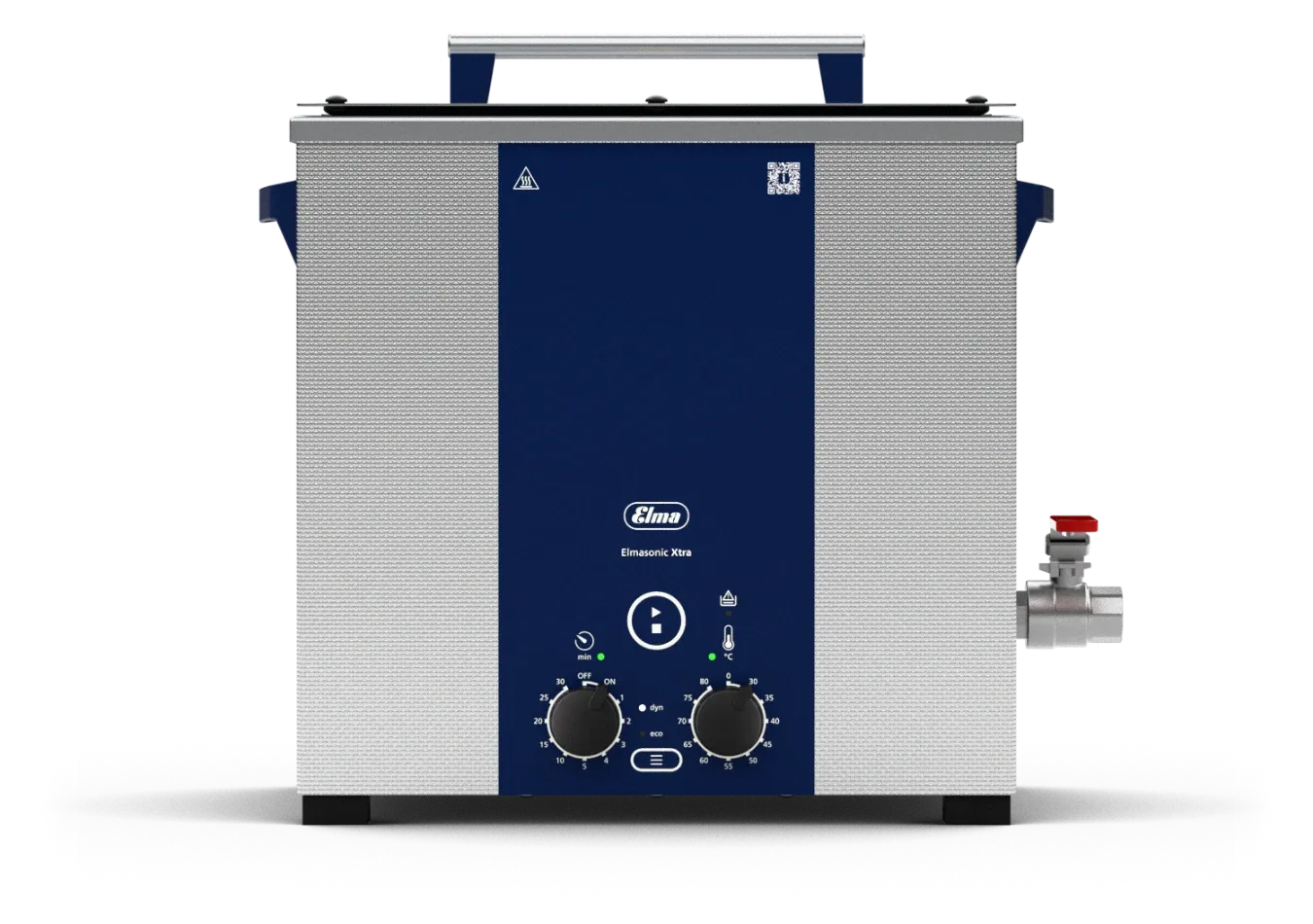

Elmasonic Xtra ultrasonic cleaning device operation

Safety as standard

dry-running protection & automatic shut-off

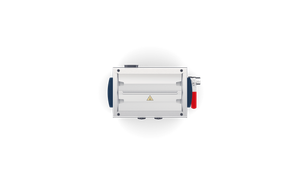

Robust stainless steel lid

easy to use thanks to integrated drip guard

The Elmasonic Xtra is the powerhouse among ultrasonic cleaning devices – developed for the highest demands in workshops and industry. With its robust stainless steel construction and enormous cleaning power, it reliably and quickly removes even the most stubborn dirt. The Xtra series stands for efficiency, durability, and uncompromising cleanliness—made by Elma.

Robust

and durable

The welded, cavitation-resistant stainless steel tank withstands even extreme continuous loads. A 3-year warranty on the tank (in single-shift operation) and 2 years on the device underline its high reliability.

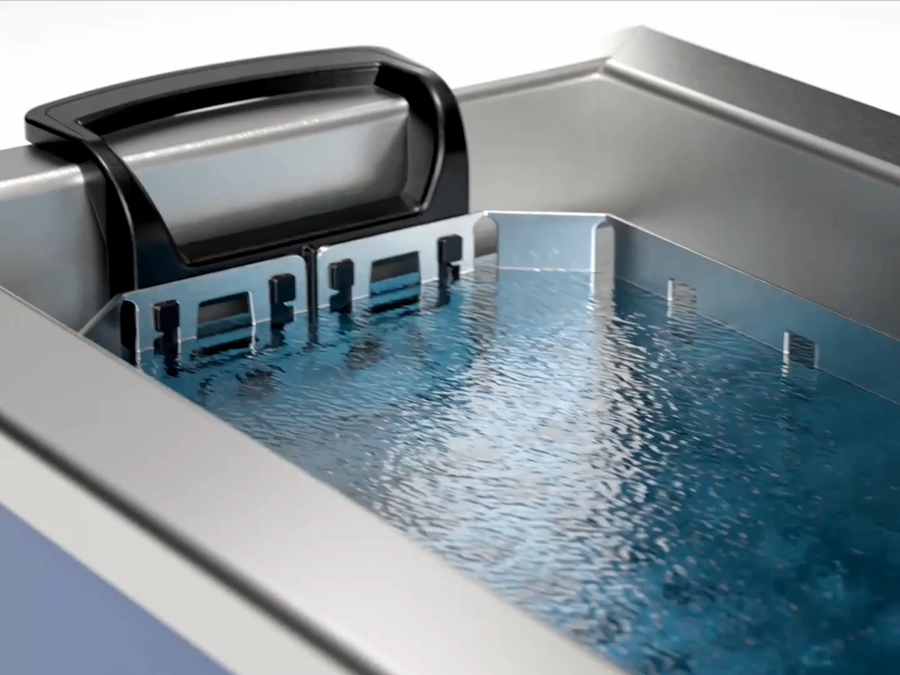

Maximum

cleaning performance

The powerful ultrasonic transducers and robust 37 kHz technology generate uniform, deep cavitation throughout the entire bath. Even stubborn oil, grease, and polishing agent residues are reliably removed. Optimized sound distribution ensures reproducible cleaning results—even with complex geometries and demanding industrial contamination.

User-friendly

& safe

The clear user interface with easy-to-read LED displays and precise rotary controls allows quick, intuitive adjustment of all parameters. Important safety features such as dry-run protection and automatic shut-off reliably protect the device and operator during daily use. This ensures that cleaning remains not only efficient, but also controlled and safe at all times.

The operating modes

Dynamic Mode

Achieving an optimal blend of powerful cleaning effectiveness and homogeneously distributed mechanical cleaning action.

Eco Mode

Gentle cleaning that is remarkably quiet and energy-efficient, ensuring a longer appliance life.

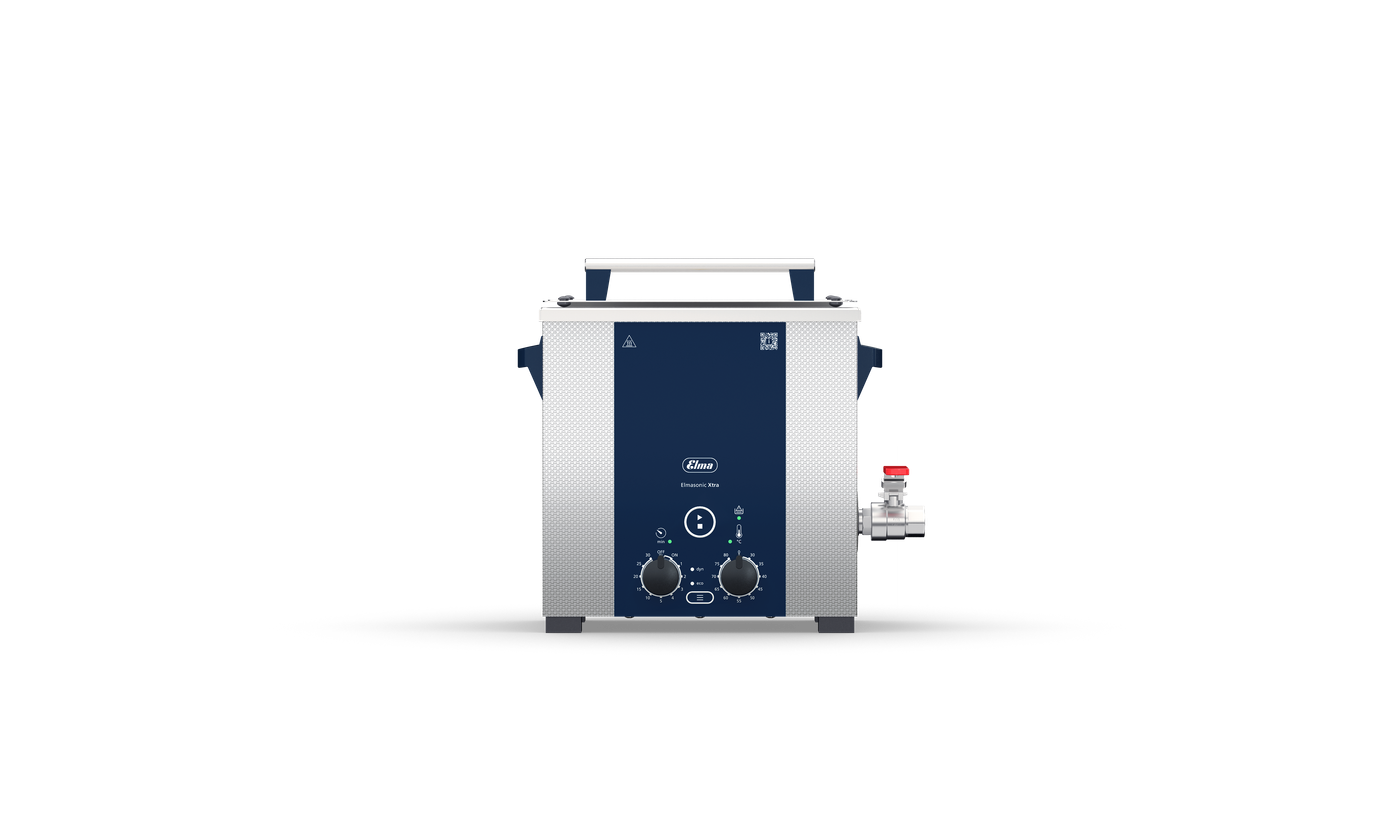

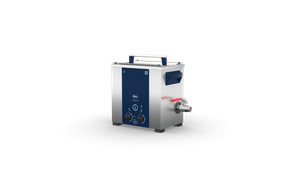

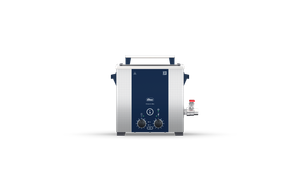

Elmasonic Xtra

Model Size

Informations
Informations	4 l	560 W	400 W
External dimensions
External dimensions	435 mm	215 mm	330 mm
Internal dimensions
Internal dimensions	235 mm	135 mm	150 mm

Available immediately. Shipping time: 3-5 business days.

€1,230

excl. VAT plus shipping

Description

Elmasonic Xtra is an ultrasonic device for intensive continuous use. It combines reliable Elma ultrasonic technology with simple operation and robust design. In addition to its particularly thick, welded stainless steel tank, the Elmasonic Xtra has also been developed with dry-run protection and an automatic shut-off after 8 hours for durability and safety. With eco and dynamic modes, it adapts flexibly to requirements, from energy-saving, quieter continuous operation to powerful intensive cleaning.

Scope of delivery

Stainless steel lid
Power cord with IEC connector (2 m length)
Manual

Note: Cleaning baskets and other accessories are available as optional extras. Items to be cleaned must not be placed directly on the bottom of the tub, as this may cause damage.

Downloads

Brochure Elmasonic Xtra
(PDF, 8.16 MB)
Elmasonic Xtra Quick Start Guide
(PDF, 2.01 MB)
Elmasonic Xtra Manual English
(PDF, 2.01 MB)
Elmasonic Xtra Safety informations
(PDF, 881.82 KB)

Model Variant	40	60	120	180	300
Model Variant	Item number EU 220 - 240 ~V	Item number CH 220 - 240 ~V	Item number UK 220 - 240 ~V	Price €	Mechanics	Recommended tank operating capacity l	Recommended Working Volume l	External Dimensions incl. mounted partsmm	Interior Dimensions mm	Weight kg	Drain Thread	Electrical and Noise level	Mains Voltage ± 10 % V	Mains Frequency Hz	Ultrasonic Frequency -2,5 / +5,5 kHz	Total Power Consumption W	Ultrasonic Power eff. ± 10% W	Ultrasonic Peak Power W	Heating Power W	Temperature °C	Safety Class	Sound pressure level (LpAU)* db(A)
Item number EU 220 - 240 ~V	1127779-001	1130253-001	1127783-001	1127785-001	1127787-001
Item number CH 220 - 240 ~V	1127779-002	1130253-002	1127783-002	1127785-002	1127787-002
Item number UK 220 - 240 ~V	1127779-003	–	–	–	–
Price €	1.230 €	1.430 €	1.990 €	2.450 €	3.010 €
Mechanics
Recommended tank operating capacity l	5	6,3	14,2	19,7	30
Recommended Working Volume l	4	5,1	12,1	16,7	25,4
External Dimensions incl. mounted parts mm	435 × 215 × 330	500 × 215 × 330	500 × 315 × 380	530 × 380 × 380	700 × 380 × 380
Interior Dimensions mm	235 × 135 × 150	300 × 135 × 150	300 × 235 × 190	300 × 295 × 190	500 × 295 × 190
Weight kg	6,8	7,9	11,3	13,2	17,8
Drain Thread	G 1/2	G 1/2	G 1/2	G 1/2	G 1/2
Electrical and Noise level
Mains Voltage ± 10 % V	EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	EU 220 - 240 ~V CH 220 - 240 ~V	EU 220 - 240 ~V CH 220 - 240 ~V	EU 220 - 240 ~V CH 220 - 240 ~V	EU 220 - 240 ~V CH 220 - 240 ~V
Mains Frequency Hz	50 / 60	50 / 60	50 / 60	50 / 60	50 / 60
Ultrasonic Frequency -2,5 / +5,5 kHz	37 kHz	37 kHz	37 kHz	37 kHz	37 kHz
Total Power Consumption W	540	560	1020	1260	1530
Ultrasonic Power eff. ± 10% W	140	160	220	260	330
Ultrasonic Peak Power W	560	640	880	1.040	1.320
Heating Power W	400	400	800	1.000	1.200
Temperature °C	30 – 80	30 – 80	30 – 80	30 – 80	30 – 80
Safety Class	IP 20	IP 20	IP 20	IP 20	IP 20
Sound pressure level (LpAU)* db(A)	–	–	–	–	–
40	1127779-001	1127779-002	1127779-003	1.230 €		5	4	435 × 215 × 330	235 × 135 × 150	6,8	G 1/2		EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	50 / 60	37 kHz	540	140	560	400	30 – 80	IP 20	–
60	1130253-001	1130253-002	–	1.430 €		6,3	5,1	500 × 215 × 330	300 × 135 × 150	7,9	G 1/2		EU 220 - 240 ~V CH 220 - 240 ~V	50 / 60	37 kHz	560	160	640	400	30 – 80	IP 20	–
120	1127783-001	1127783-002	–	1.990 €		14,2	12,1	500 × 315 × 380	300 × 235 × 190	11,3	G 1/2		EU 220 - 240 ~V CH 220 - 240 ~V	50 / 60	37 kHz	1020	220	880	800	30 – 80	IP 20	–
180	1127785-001	1127785-002	–	2.450 €		19,7	16,7	530 × 380 × 380	300 × 295 × 190	13,2	G 1/2		EU 220 - 240 ~V CH 220 - 240 ~V	50 / 60	37 kHz	1260	260	1.040	1.000	30 – 80	IP 20	–
300	1127787-001	1127787-002	–	3.010 €		30	25,4	700 × 380 × 380	500 × 295 × 190	17,8	G 1/2		EU 220 - 240 ~V CH 220 - 240 ~V	50 / 60	37 kHz	1530	330	1.320	1.200	30 – 80	IP 20	–

Matching accessories

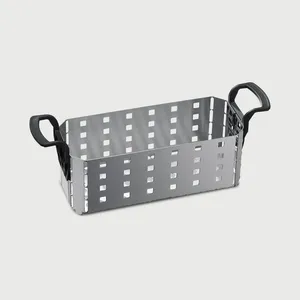

Reinigungskorb für Elmasonic Ultraschallgeräte Größe 60

Modular cleaning basket

46,00 €

„The device runs daily in multi-shift operation - consistently high performance without failures.”

Maria Mustermann

Areas of application

Cleaning

circuit boards

Industrial

component cleaning

Cleaning

precision parts

Cleaning

optical glass

Individual consultation

Our experts will assist you in selecting and combining the right equipment, accessories, and chemicals for your requirements.

Request rental equipment

Rent a device as a replacement while your device is being repaired by Elma or to test it for your application.

Start cleaning test

We test your components under real conditions - so you can make confident decisions.
