Elmasteam4.5 basic

Overview Technical specifications Accessories

Elmasteam4.5 basic

Long steam availability

thanks to powerful heating technology

Flexible application

with either a fixed nozzle or ergonomic handpiece

High quality & reliability

with a 3-year warranty

TÜV type testing

in accordance with DIN EN 61010-1

Indirect, cast heating in the boiler floor

durable and protected against limescale deposits

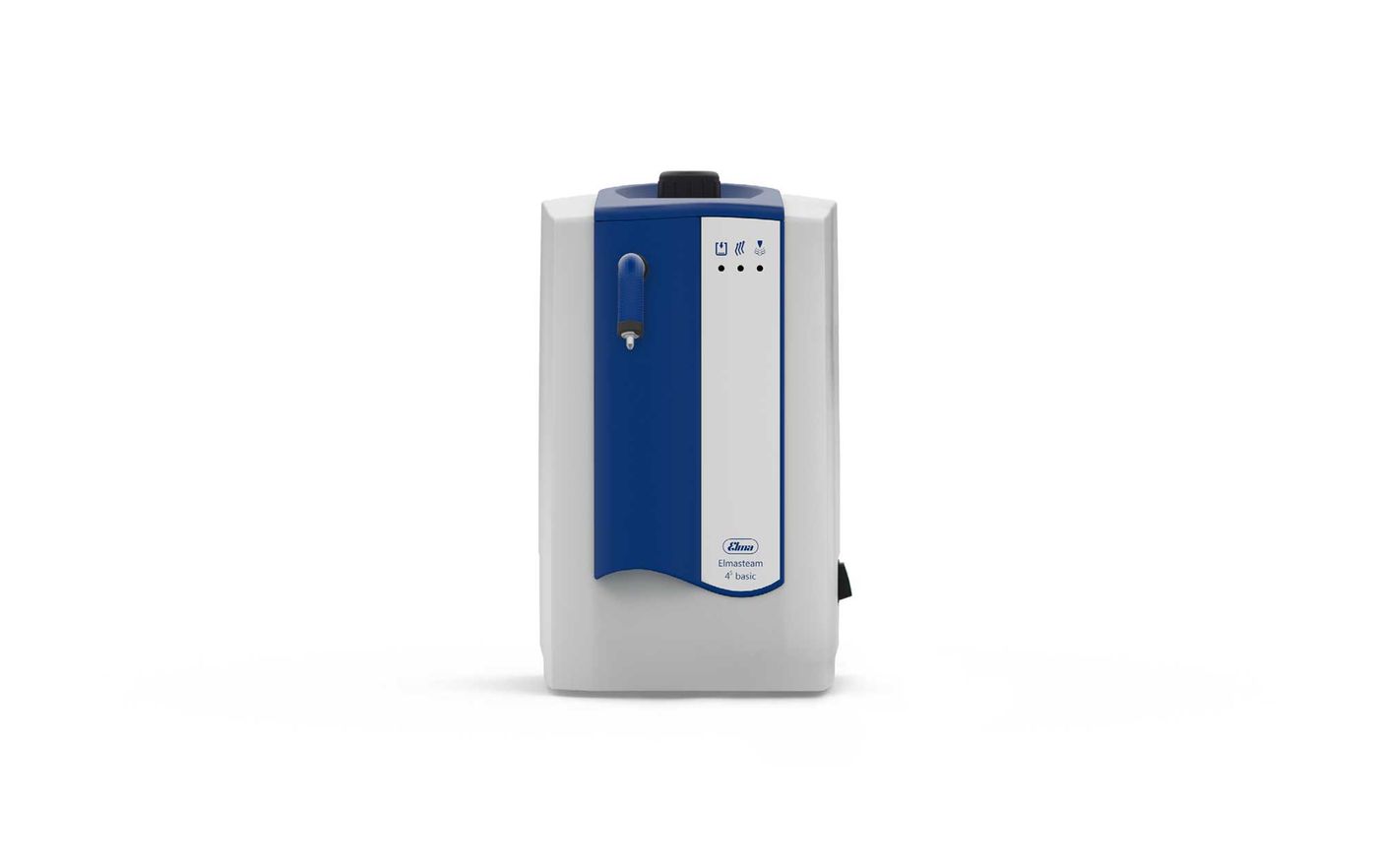

Elmasteam 4.5 basic is the easy way to get started with professional steam cleaning – compact, powerful, and chemical-free. With 4.5 bar steam pressure, high flow rate, and robust technology, it reliably removes oils, greases, and other residues – ideal for workshops, jewelers, and industrial applications where precision and cleanliness are required.

Elmasteam 4.5 basic

basic

Usage

Informations
Informations	4.5 bar	< 135 °C
External Dimensions
External Dimensions	250 mm	320 mm	420 mm

Available immediately. Shipping time: 3-5 business days.

€1,210

excl. VAT plus shipping

Description

Elmasteam 4.5 basic – powerful, gentle, environmentally friendly With a steam pressure of 4.5 bar, the Elmasteam 4.5 basic cleans effectively and gently at the same time – without any chemicals. The high pressure and temperature effortlessly dissolve even waxes, greases and oils. The higher water content in the steam enables thorough cleaning even of sensitive parts. Ideal for use in watch and jewellery workshops, industry and trade, as well as in dental laboratories – from pre-cleaning to intermediate cleaning of a wide variety of workpieces.

Scope of delivery

Maintenance Tube, Filling Sieve, Flushing set
Pressure tank screw cap, 3 O-rings
Actuation clamp
Power cable with rubber connector (2 m length)
Manual

Downloads

Elmasteam 4,5 basic Brochure EN
(PDF, 857.40 KB)
Elmasteam 4,5 basic Manual EN
(PDF, 914.03 KB)

Model Variant	basic	basic HP
Model Variant	Item number EU 220 - 240 ~V	Item number CH 220 - 240 ~V	Item number UK 220 - 240 ~V	Price €	Mechanics	Has Fixed Nozzle	Has Handpiece	Hose length Handpiece m	Max. working pressure bar	Pressure vessel capacity l	Max. filling volume l	External Dimensions incl. mounted partsmm	Weight kg	Electrical and Noise level	Mains Voltage ± 10 % V	Mains Frequency Hz	Total Power Consumption W	Steam temperature Pressure vessel °C	Pressure vessel volume °C
Item number EU 220 - 240 ~V	1068874-001	1098068-001
Item number CH 220 - 240 ~V	1068874-002	1098068-002
Item number UK 220 - 240 ~V	1068874-003	1098068-003
Price €	1.210 €	1.540 €
Mechanics
Has Fixed Nozzle	•
Has Handpiece		•
Hose length Handpiece m	–	1,3
Max. working pressure bar	4,5	4,5
Pressure vessel capacity l	4	4
Max. filling volume l	3,3	3,3
External Dimensions incl. mounted parts mm	250 × 320 × 420	290 × 320 × 420
Weight kg	6,8	7,8
Electrical and Noise level
Mains Voltage ± 10 % V	EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V
Mains Frequency Hz	50 / 60	50 / 60
Total Power Consumption W	2.800	2.800
Steam temperature Pressure vessel °C	155	155
Pressure vessel volume °C	135	135
basic	1068874-001	1068874-002	1068874-003	1.210 €		•		–	4,5	4	3,3	250 × 320 × 420	6,8		EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	50 / 60	2.800	155	135
basic HP	1098068-001	1098068-002	1098068-003	1.540 €			•	1,3	4,5	4	3,3	290 × 320 × 420	7,8		EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	50 / 60	2.800	155	135

Matching accessories

Water softening unit

300,00 €

2mm nozzle for Elmasteam handpiece

Individual consultation

Our experts will assist you in selecting and combining the right equipment, accessories, and chemicals for your requirements.

Request rental equipment

Rent a device as a replacement while your device is being repaired by Elma or to test it for your application.

Start cleaning test

We test your components under real conditions - so you can make confident decisions.

service

The power of steam – Gentle and environmentally friendly.

The origins of Elma – Over 70 years of experience and innovation

Model Variant	basic	basic HP
Item number EU 220 - 240 ~V	1068874-001	1098068-001
Item number CH 220 - 240 ~V	1068874-002	1098068-002
Item number UK 220 - 240 ~V	1068874-003	1098068-003
Price €	1.210 €	1.540 €
Mechanics
Has Fixed Nozzle	•
Has Handpiece		•
Hose length Handpiece m	–	1,3
Max. working pressure bar	4,5	4,5
Pressure vessel capacity l	4	4
Max. filling volume l	3,3	3,3
External Dimensions incl. mounted parts mm	250 × 320 × 420	290 × 320 × 420
Weight kg	6,8	7,8
Electrical and Noise level
Mains Voltage ± 10 % V	EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V
Mains Frequency Hz	50 / 60	50 / 60
Total Power Consumption W	2.800	2.800
Steam temperature Pressure vessel °C	155	155
Pressure vessel volume °C	135	135
basic	1068874-001	1068874-002	1068874-003	1.210 €	•		–	4,5	4	3,3	250 × 320 × 420	6,8	EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	50 / 60	2.800	155	135
basic HP	1098068-001	1098068-002	1098068-003	1.540 €		•	1,3	4,5	4	3,3	290 × 320 × 420	7,8	EU 220 - 240 ~V CH 220 - 240 ~V UK 220 - 240 ~V	50 / 60	2.800	155	135
