ElmasenseCavicheck

INNOVATION MADE IN GERMANY

Cavicheck is a compact device designed to measure cavitation noise levels for the qualification of ultrasonic cleaning baths. It is the clean, reliable, and intelligent alternative to traditional measurement methods—developed and manufactured in Germany.

Measure. Don’t test.

Process reliability through equipment qualification based on real measurement data in accordance with IEC/TS 63001.

Intuitive operation

NFC interface for data reading

Elma Hub

Evaluation and documentation of measurement results including the creation of certificates.

Sustainability

No battery required, as ultrasonic energy is used as the energy source.

Meets global standards

Compliance through measurement, analysis and documentation (e.g. VDA 19.1)

Sensor-based measurement, digital evaluation, automated certification.

The measurement data produced by Elmasense Cavicheck is automatically transferred to the Elma Hub via NFC, evaluated, and issued as a standards-compliant certificate. The device qualification is based on real cavitation measurement data in accordance with IEC/TS 63001:2024 and therefore meets the requirements of common quality standards for measurement, evaluation, and documentation.

Step 01Positioning & measuring

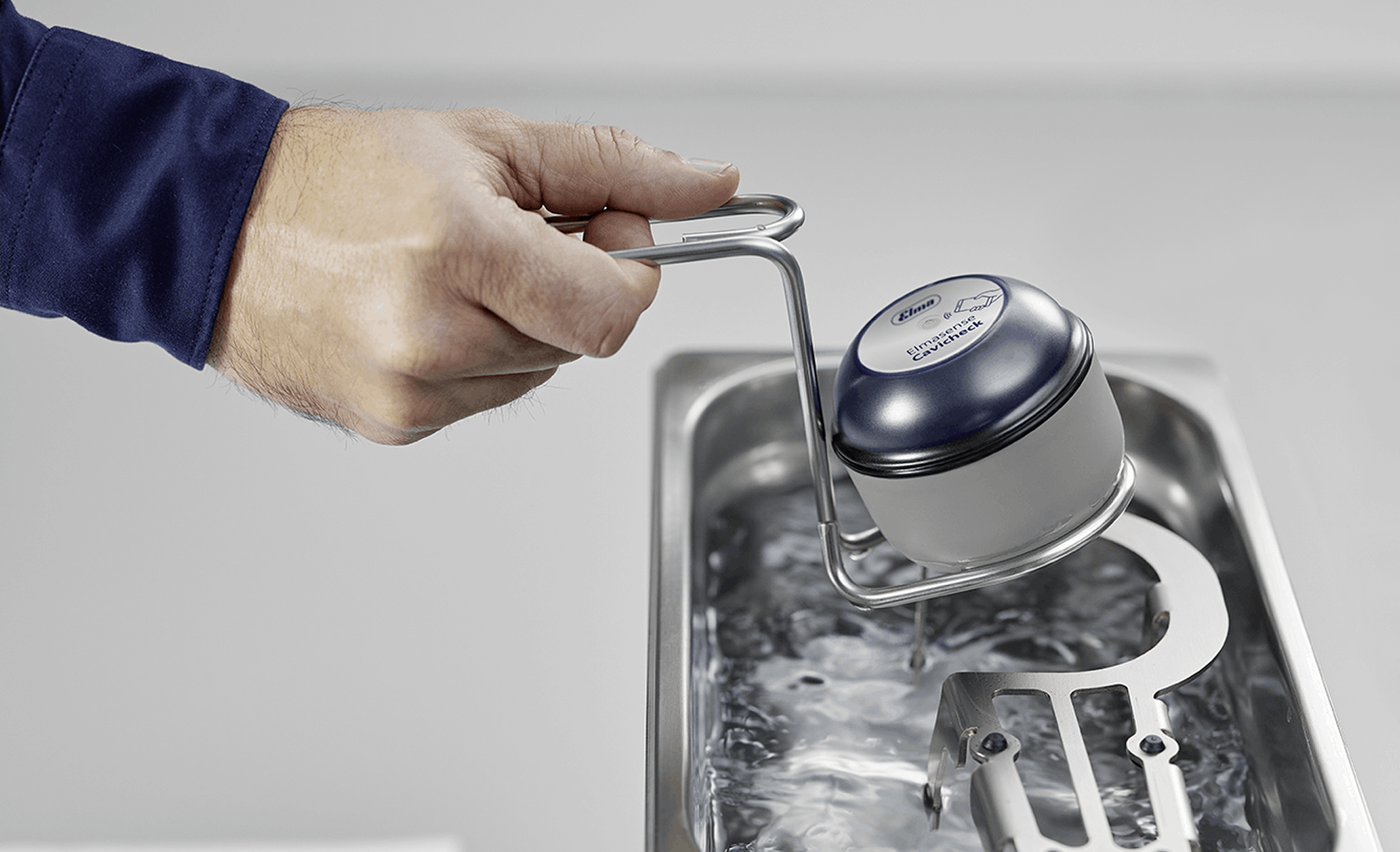

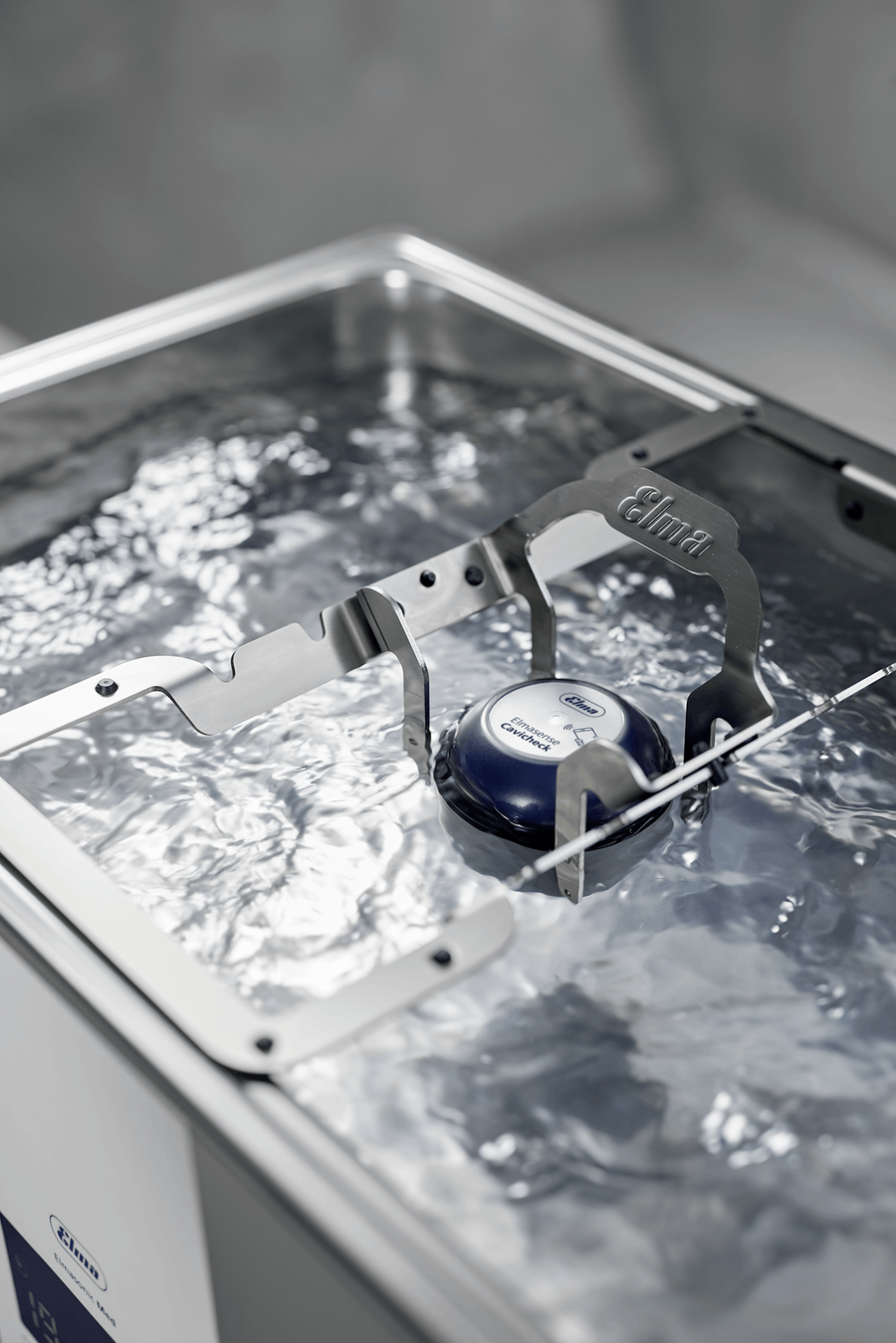

Use the lifter to position Cavicheck securely in the ultrasonic bath. Cavitation measurement data is collected automatically. If the LED lights up green, the cavitation power is sufficient.

Step 02 Transfer data

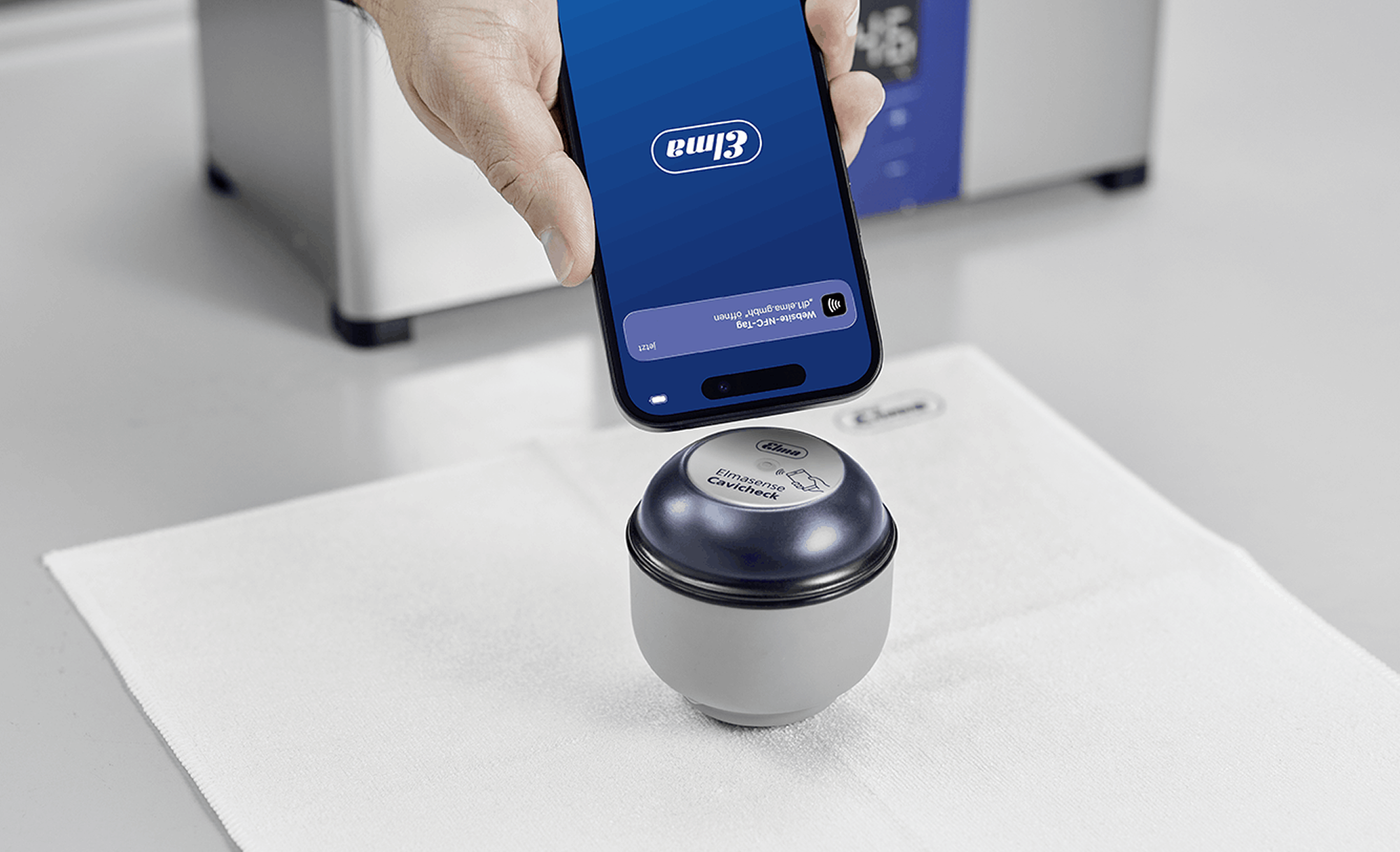

Cavitation measurement data can be transmitted to the Elma Hub in encrypted form via NFC. No app is required for this.

Schritt 03 Evaluate & Certify

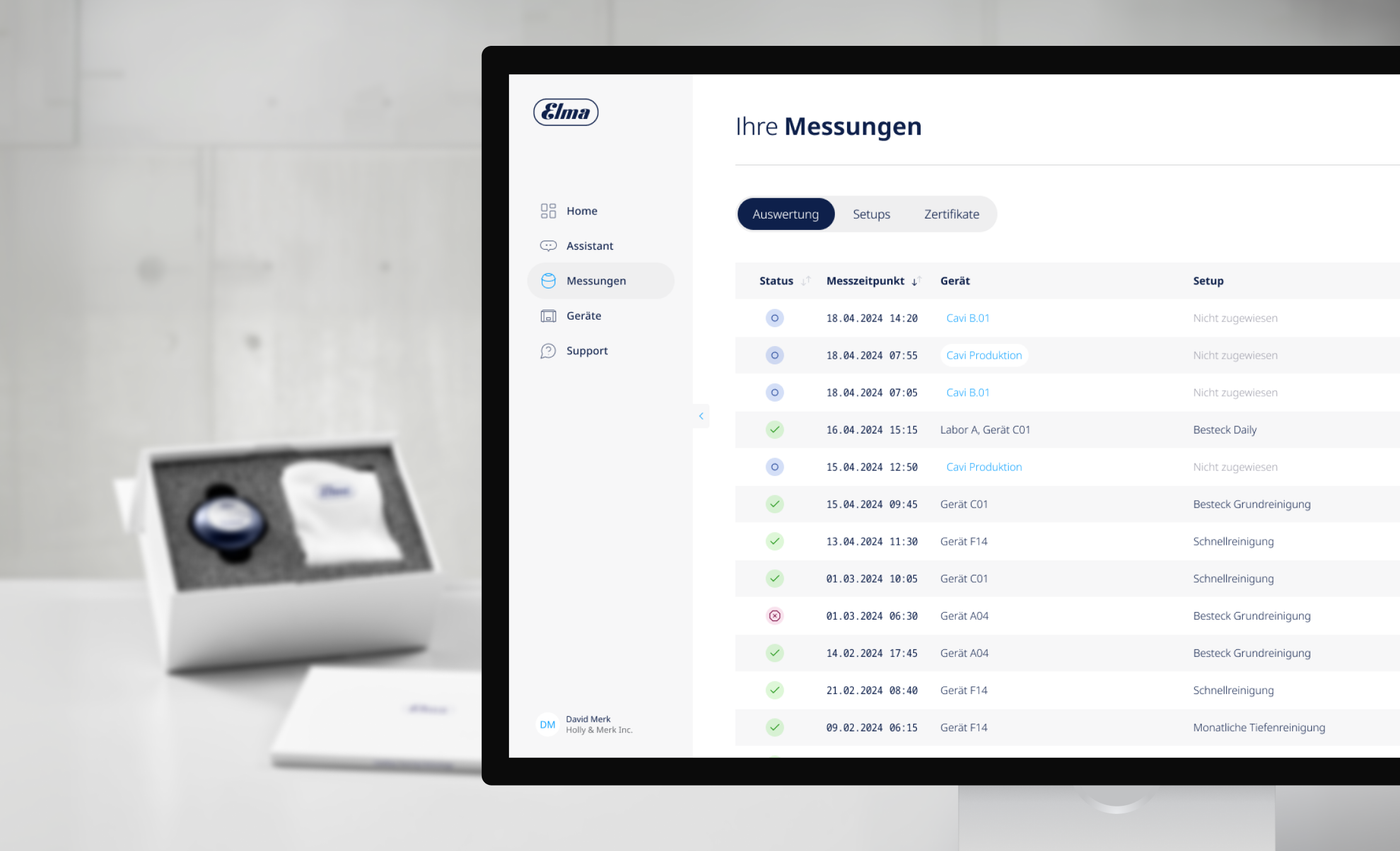

All measurements are available for review in the Elma Hub. With just one click, you can generate a standards-compliant certificate—ready for your quality management system or your next audit.

All basic Cavicheck functions are available for free in the Elma Hub.

„Finally, real measurement data instead of subjective estimates.”

Oliver Bothe, Product Manager

„With this new, sustainable product, we are taking the qualification of ultrasonic baths to a whole new level.”

David Holly, Principal Engineer

Digital Certification and Process Management

Elmasense Cavicheck and Elma Hub form a comprehensive digital qualification system: Measure using sensors, analyze digitally, and certify with a single click. The cavitation measurement data is automatically saved, archived in an audit-proof manner, and can be accessed at any time.

Elmasense Cavicheck

Set

Variants

Informations
Informations	175 g	25–50 kHz
External Dimensions
External Dimensions	72 mm	71 mm

The delivery phase will begin on May 4th of 2026. Usual delivery time is approximately 15 working days.

€850

excl. VAT plus shipping

Description

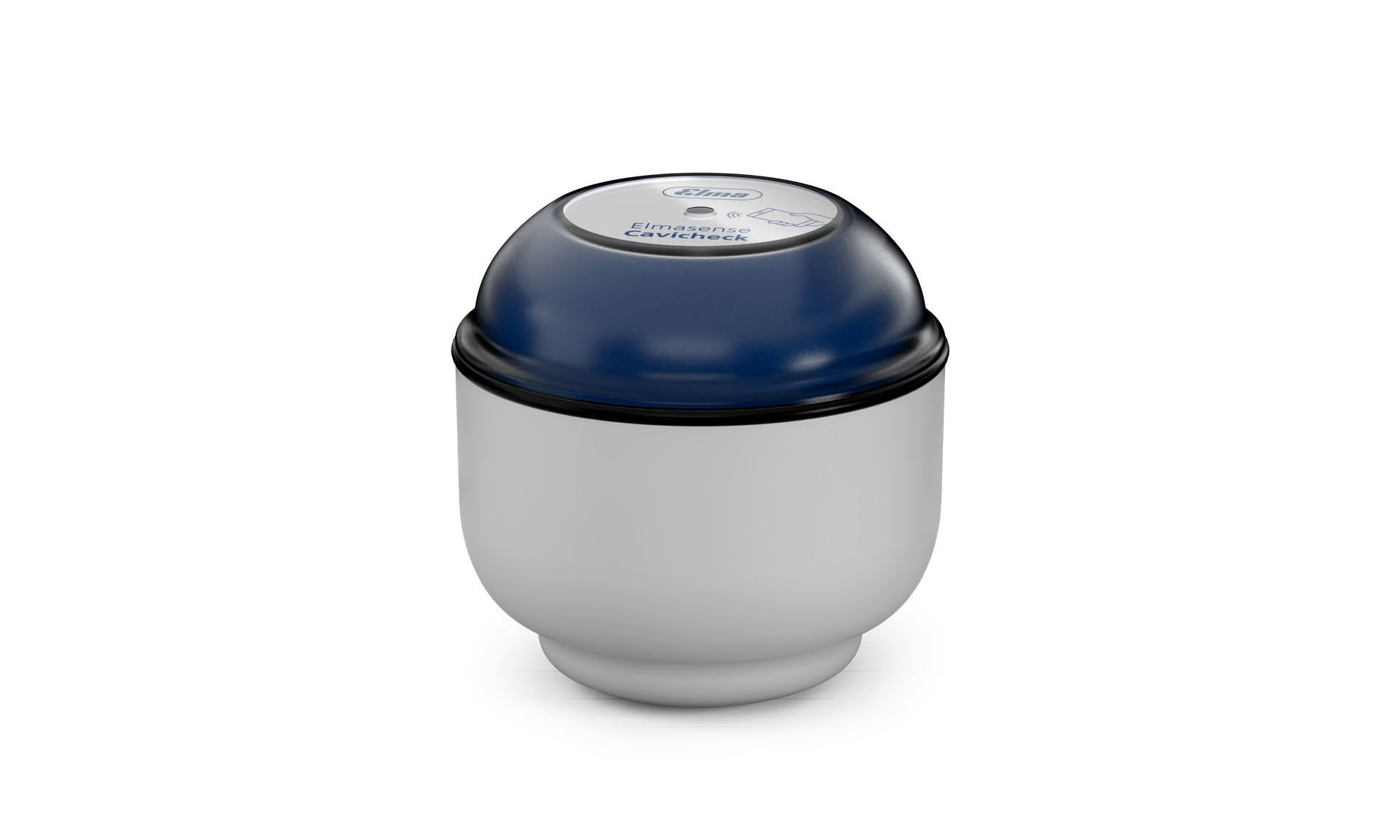

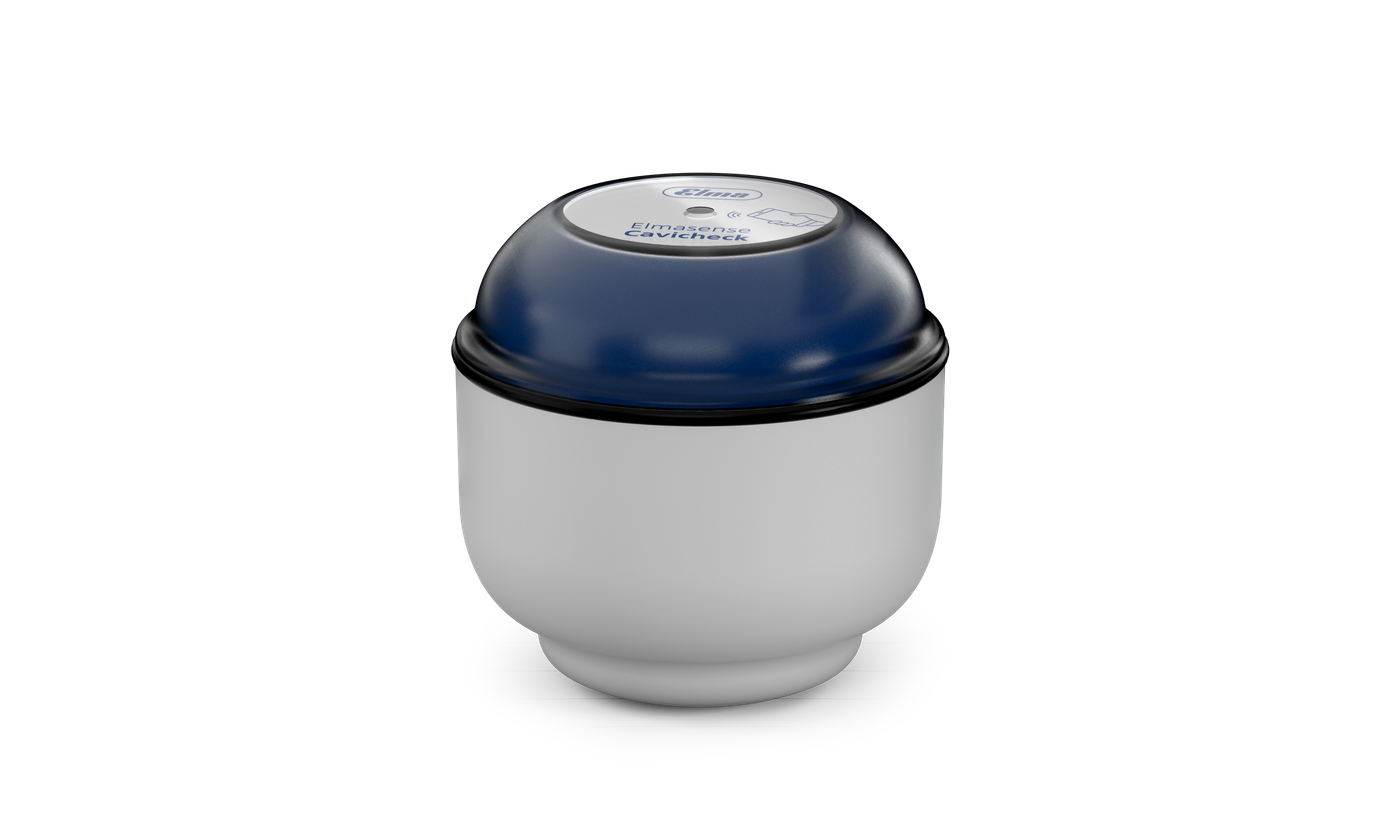

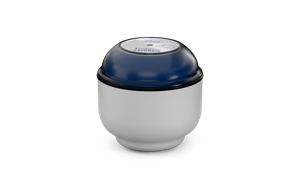

Elmasense Cavicheck is a compact measuring device for qualifying cavitation in ultrasonic baths. The Cavicheck Lifter is used to position the Elmasense Cavicheck securely in the ultrasonic bath. The measurement then runs automatically. The Elmasense Cavicheck uses ultrasonic energy as its energy source. An LED display shows the current cavitation power. The measured data can be analysed and documented via our digital portal, the “Elma Hub”. Note: Suitable for all Elmasonic ultrasonic benchtop and floor-standing units (Not suitable for: tanks smaller than 30 liters, side-emitting units, or multi-chamber cleaning systems). Use in ultrasonic baths from other manufacturers is possible but is the user’s responsibility.

Scope of delivery

Microfibre cloth
Magnetic folding box for safe transport
Cavicheck Lifter
Cavicheck Fixator Single 30–300

Downloads

Elmasense Cavicheck Brochure
(PDF, 1003.96 KB)
Data Notes (Please note the data information in accordance with the EU Data Act before making a purchase.)
(PDF, 176.22 KB)

Model Variant	Set / Single
Model Variant	Item number Set	Item number Single	List Price €	External Dimensions mm	Weight g	Ultrasonic frequency measurement range kHz	Measurement accuracy KRZ dB	Temperature operating range °C	Protection class	Interface	Recommended calibration cycle	Storage temperature range °C
Item number Set	1144463
Item number Single	1113882
List Price €	850 €
External Dimensions mm	72 × 71
Weight g	175
Ultrasonic frequency measurement range kHz	25 – 50
Measurement accuracy KRZ dB	+/- 1,5
Temperature operating range °C	20 – 65
Protection class	68
Interface	NFC = Near Field Communication
Recommended calibration cycle	1 Jahr oder 100 Betriebsstunden
Storage temperature range °C	5 – 40
Set / Single	1144463	1113882	850 €	72 × 71	175	25 – 50	+/- 1,5	20 – 65	68	NFC = Near Field Communication	1 Jahr oder 100 Betriebsstunden	5 – 40

How measurements are performed with Elmasense Cavicheck.

Clean processes. Clean data. Digital qualification via the Elma Hub

Measurement data in the Elma Hub is automatically backed up, audit‑proof archived, and available at any time.
All basic Cavicheck functions can be used free of charge in the Elma Hub. Cavicheck Plus extends the range of functions for professional use in production and quality assurance.

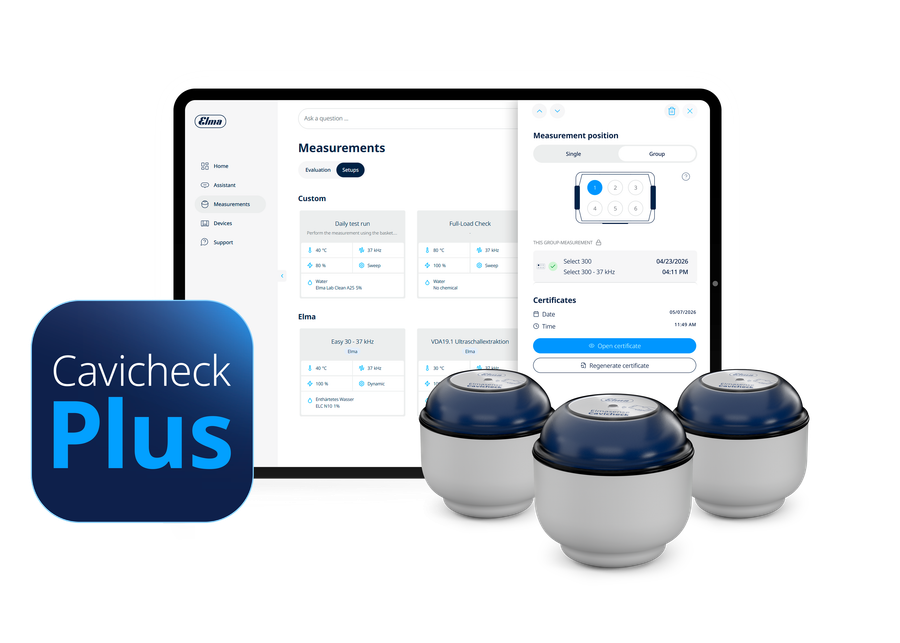

Extended functionality with Cavicheck Plus

Cavicheck Plus elevates the professional use of measurement technology in production and quality assurance to the next digital level. With an upgrade to Cavicheck Plus, you gain access to the full functionality of the Elma Hub: customizable measurement setups, multi-point measurements, detailed pass/fail certificates including measurement data, qualification of up to 50 devices, …

Coming soon.
