ElmasolvexVA

Fully automatic solvent cleaning

Less manual work, more efficiency.

Vacuum technology

for thorough cleaning, even in cavities

Multi-frequency ultrasound with rotation

Highest cleanliness for complex parts

For solvents with a flash point > 12 °C

Safe and flexible to use

Certified explosion protection (TÜV/EU)

for fire and explosion-proof operation

Elmasolvex VA offers reliable clockwork cleaning with manual control – robust, precise, and certified explosion-proof. With four cleaning chambers and one heating chamber, defined grid positions, and easy handling, it meets the highest requirements for solvent- and water-based cleaning – ideal for workshops that value precision and maximum safety.

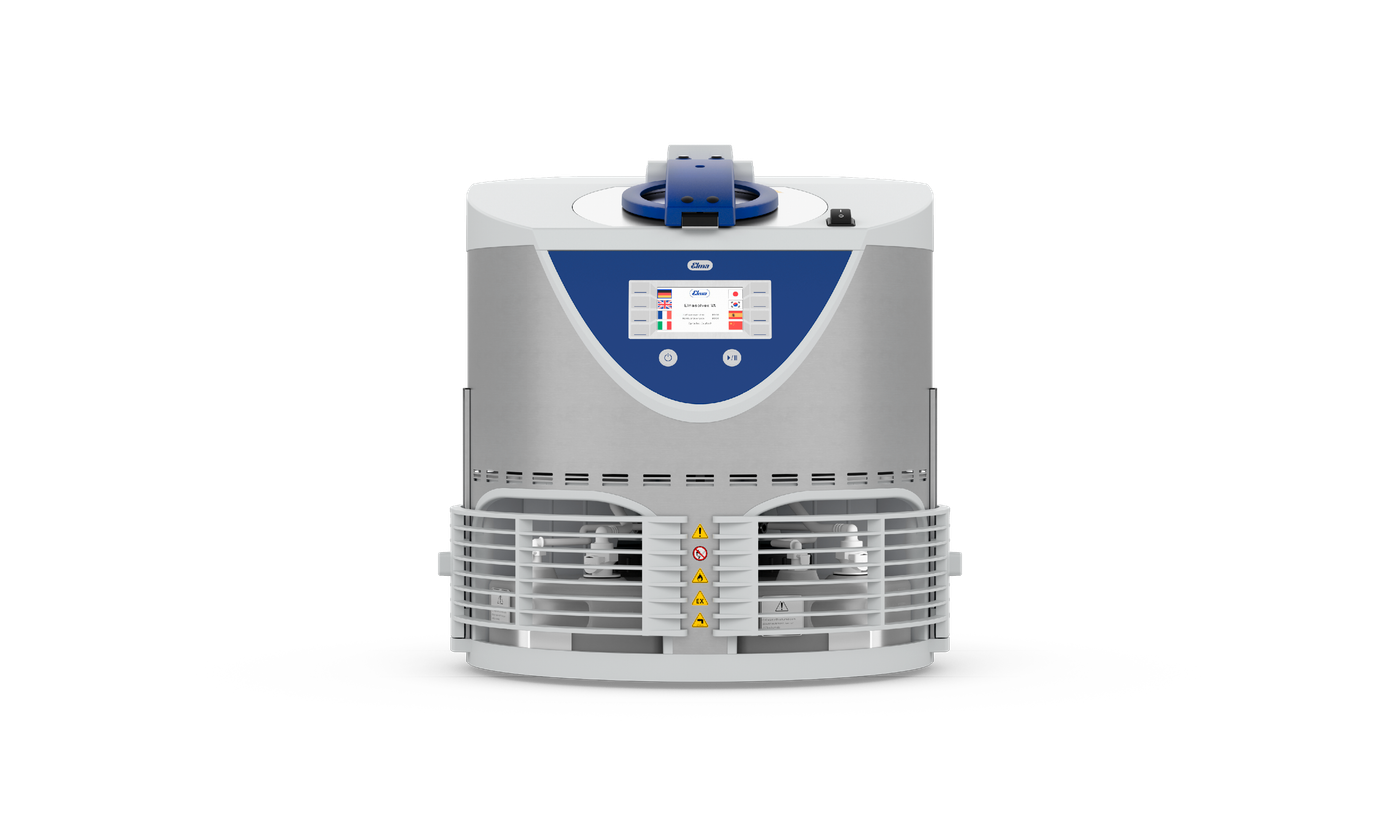

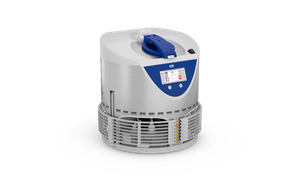

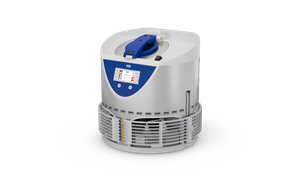

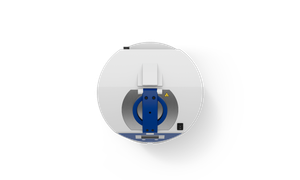

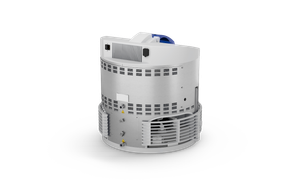

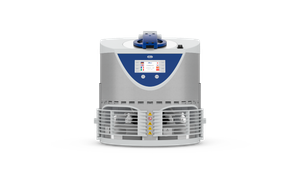

Elmasolvex VA

Informations
Informations	4	2.5 l
External Dimensions
External Dimensions	605 mm	580 mm	610 mm

Available immediately. Shipping time: 3-5 business days.

€16,770

excl. VAT plus shipping

Description

Elmasolvex VA – fully automatic precision cleaning with vacuum technology The Elmasolvex VA is a fully automatic single-chamber cleaning machine for mechanical precision parts such as gears, springs or housings. Multi-frequency ultrasound in a rotary or oscillatory process reliably cleans and rinses even hard-to-reach areas. Vacuum technology removes air bubbles and ensures maximum cleaning depth. The user is protected from solvent vapours and odours by suction or a self-sufficient filter system. Integrated explosion protection in accordance with TÜV and EU standards prevents fire and explosion risks and allows the legally safe use of ultrasound.

Scope of delivery

Basket holder Ø 80 mm
USB cable for software updates
Connection set exhaust hoses + Allen key to assemble the set
4 spare suction filters for media container, funnel; 2 plastic plugs, Allen key for guard grille mounting
Manual
Power cable

Downloads

Elmasolvex VA Broschüre EN
(PDF, 975.75 KB)
Elmasolvex VA Manual EN
(PDF, 6.13 MB)

Model Variant	Elmasolvex VA
Model Variant	Item number EU 220 - 240 ~V	Price €	Mechanics	External Dimensions incl. mounted partsmm	Weight with container kg	Number of media containers	Volume per media container l	Exhaust air connections (passive)	Electrical and Noise level	Mains Voltage ± 10 % V	Mains Frequency Hz	Total Power Consumption W	Ultrasonic power effective, adjustable 30 - 100% W	Standby Power Consumption W	Fuse mains input (see type plate)	Power cable cross-section mm²	Feature Name kHz	Speed range Spin mode Freely adjustable up to max.	Volume per media container Hz	Deflection Oscillation / Vibration °	Sound pressure level (LpAU)* db(A)
Item number EU 220 - 240 ~V	1038651-001
Price €	16.770 €
Mechanics
External Dimensions incl. mounted parts mm	605 × 580 × 610
Weight with container kg	39
Number of media containers	4
Volume per media container l	2,5
Exhaust air connections (passive)	2 x DN6
Electrical and Noise level
Mains Voltage ± 10 % V	EU 220 - 240 ~V
Mains Frequency Hz	50 / 60
Total Power Consumption W	220
Ultrasonic power effective, adjustable 30 - 100% W	50
Standby Power Consumption W	20
Fuse mains input (see type plate)	2 x T4A / 250
Power cable cross-section mm²	3 x 1,0
Feature Name kHz	40 / 80
Speed range Spin mode Freely adjustable up to max.	1.400
Volume per media container Hz	1 – 14
Deflection Oscillation / Vibration °	1 – 60
Sound pressure level (LpAU)* db(A)	< 70
Elmasolvex VA	1038651-001	16.770 €		605 × 580 × 610	39	4	2,5	2 x DN6		EU 220 - 240 ~V	50 / 60	220	50	20	2 x T4A / 250	3 x 1,0	40 / 80	1.400	1 – 14	1 – 60	< 70

Matching accessories

Basket Set Ø 64 mm for Elmasolvex VA

265,00 €

Basket holder Elmasolvex

24,00 €

Lid seal Elmasolvex VA

33,30 €

refill kit activated carbon

60,00 €

activated carbon unit set

1.156,00 €

Individual consultation

Our experts will assist you in selecting and combining the right equipment, accessories, and chemicals for your requirements.

Request rental equipment

Rent a device as a replacement while your device is being repaired by Elma or to test it for your application.

Start cleaning test

We test your components under real conditions - so you can make confident decisions.

service

Complete solutions – for watchmakers and the cleaning of small parts

The origins of Elma – Over 70 years of experience and innovation

Model Variant	Elmasolvex VA
Item number EU 220 - 240 ~V	1038651-001
Price €	16.770 €
Mechanics
External Dimensions incl. mounted parts mm	605 × 580 × 610
Weight with container kg	39
Number of media containers	4
Volume per media container l	2,5
Exhaust air connections (passive)	2 x DN6
Electrical and Noise level
Mains Voltage ± 10 % V	EU 220 - 240 ~V
Mains Frequency Hz	50 / 60
Total Power Consumption W	220
Ultrasonic power effective, adjustable 30 - 100% W	50
Standby Power Consumption W	20
Fuse mains input (see type plate)	2 x T4A / 250
Power cable cross-section mm²	3 x 1,0
Feature Name kHz	40 / 80
Speed range Spin mode Freely adjustable up to max.	1.400
Volume per media container Hz	1 – 14
Deflection Oscillation / Vibration °	1 – 60
Sound pressure level (LpAU)* db(A)	< 70
Elmasolvex VA	1038651-001	16.770 €	605 × 580 × 610	39	4	2,5	2 x DN6	EU 220 - 240 ~V	50 / 60	220	50	20	2 x T4A / 250	3 x 1,0	40 / 80	1.400	1 – 14	1 – 60	< 70
