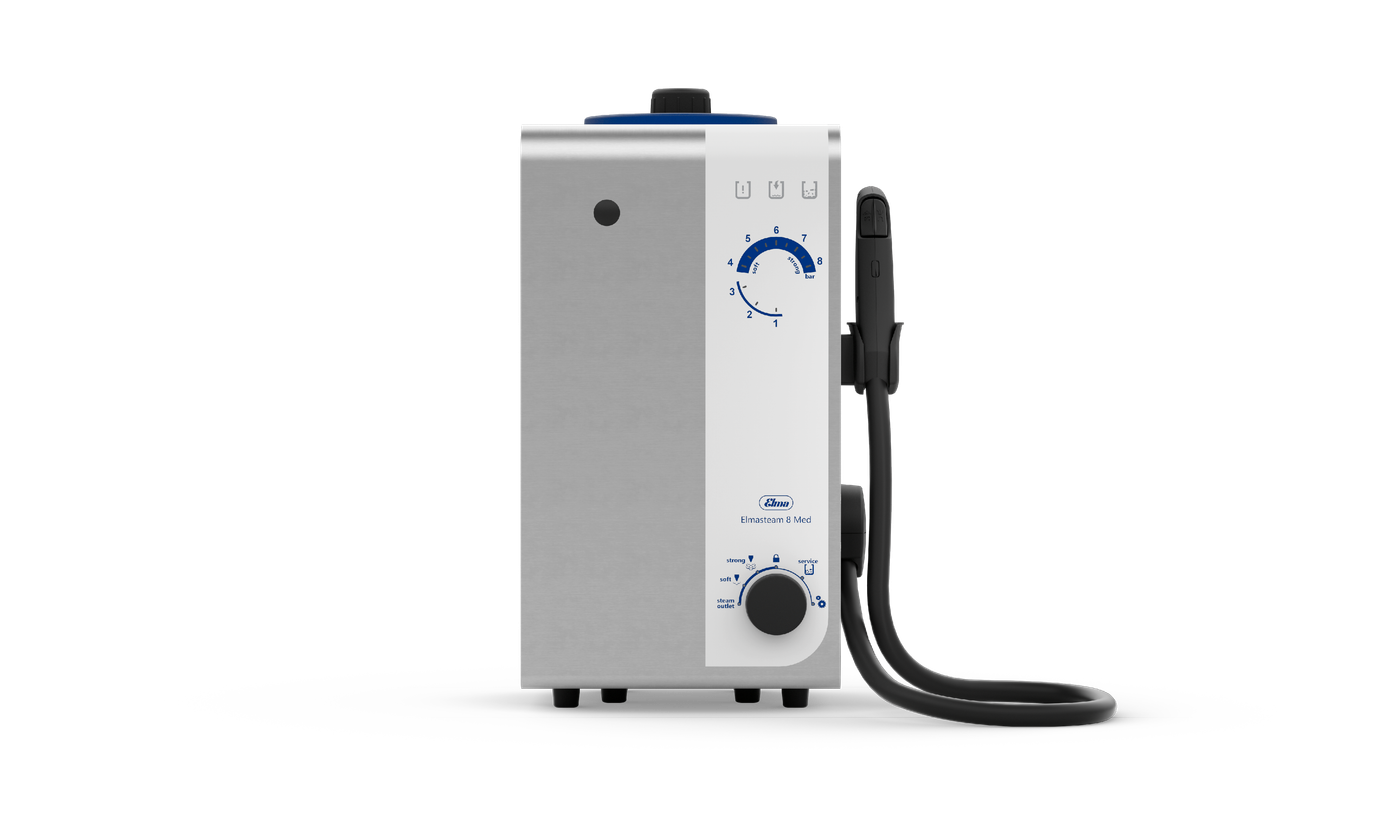

Elmasteam 8 med

Powerful cleaning in the CSSD

Certain instruments, such as burrs, drills and electro-surgicalinstruments, often do not become sufficiently clean in the standard washing and disinfecting unit.

The Elmasteam 8 med steam jet cleaner is the ideal tool to precleansuch instruments and smoothly removes even tenacious contaminations like burnt-in tissue on electro-surgical forceps. Sothe valuable instruments are preserved for longer time.

The insides of hollow body instruments can be connectec directlyto the Luer-Lock-connection at the handpiece or can be cleaned with the optionally available adapter set.

The high performance of the Elmasteam 8 med is due to the optimised piping system with larger cross sections, the intelligent pump control, the increased heating power (60% more) as well as the optimised heating position.

The intelligent control system of the Elmasteam 8 med calculates, by means of preset water hardness and the intensity and frequency of use, the proper time for decalcification. The user is led step by step through the decalcification process. Due to this integrated decalcification programme and the protection against dry running of the heating, the Elmasteam 8 med is highly reliable and fit for use for a long time.

By taking these measures and provided that the unit is being operated properly and in one-shift operation, the usual warranty can be extended to 3 years.

  • Details
  • Downloads
Mains voltage (V)220-240
Mains frequency (Hz)50/60
Max. power consumption (W)3120
Steam temperature in the tank (°C)185
Steam temperature at the nozzle (°C)160
Operating pressure (bar)8.0
Pressure tank volume (l)5.0
Max. filling volume (l)3.8
Dimensions W/D/H (mm)285/350/520
Weight (kg)20.0
Registered as medical deviceClass 1
